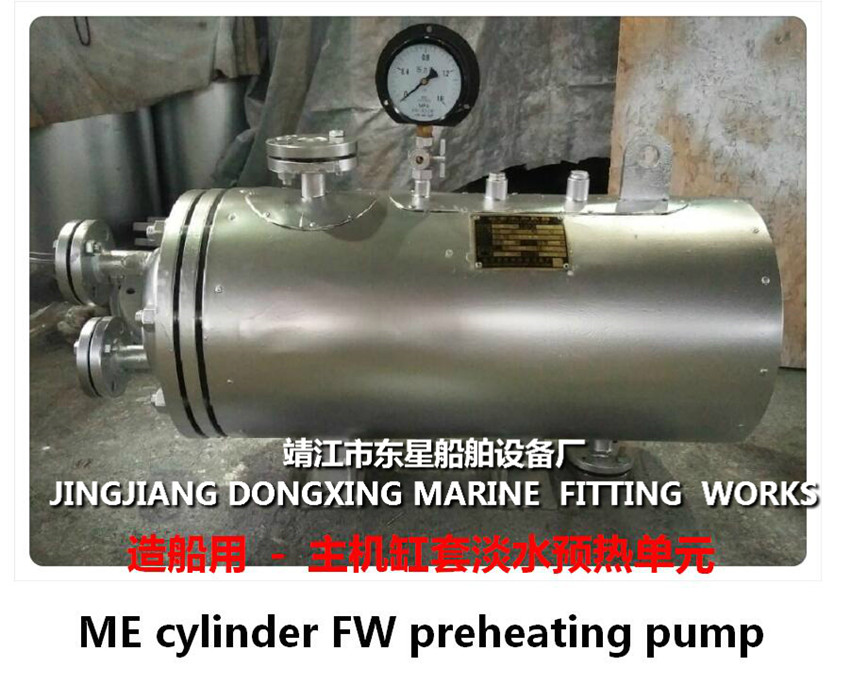

Main cylinder liner fresh water preheating unit ME cylinder FW preheating pump

Model model : DRG0.1

Type: Type shell tube type
Quantity Quantity: 1 set / ship 1set / ship
Heating medium Heater Type: 0.7Mpa saturated steam
Working pressure working pressure : 0.5MPa
Heating capacity Capacity: 50KW
Flow: Water flow rate: 1.8 m3/h
Material Material: Q345R
Inlet / outlet water temperature Water inlet / outlet temperature: 15 ° C -65 ° C
Pump type Pump Type: Centrifugal pump Centrifugal pump
Displacement Capacity: 5.0m3/h
Delivery pressure: 0.32Mpa
With safety valve and control box assembly assort safety valve, control box components
The specific interface path is confirmed in the approval diagram.
Specific interface sizes in recognition.

Professional manufacturer of marine pressure vessels-Jingjiang Dongxing Marine Equipment Factory
JINGJIANGSHI DONGXING MARINE FITTING WORKS
(JINGJIANG DONGXING MARINE FITTING WORKS)

Jingjiang Dongxing Ship Equipment Factory is located in the lower reaches of the Yangtze River and is located in Xilai Town, Jingjiang City. Founded in 2000, it was appointed by China National Shipbuilding Corporation in 2000 and was a joint venture in the same year.

Jingjiang Dongxing Ship Equipment Factory Specializing in the production:
Marine air bottle CB493-98, marine electric heating water tank CB/T3686-1995, marine steaming dual-purpose hot water tank CB/T3686-1995, marine sea fresh water pressure water tank CB455-91, DC454 wet Mars extinguisher, VTJZ Pressure vessel for dry Mars extinguisher, quick-closing valve control box SDC541, hot well module / hot well preheating unit

Marine air bottle CB493-87:

Marine A-type vertical air bottle, marine A-type inclined air bottle, marine B-type bedroom air bottle (manufacturing unit - Jingjiang Dongxing Marine Equipment Factory)

Marine Mars extinguished silencer:

DC454 wet Mars extinguisher, DS454 dry Mars extinguisher VTJZ dry Mars extinguish silencer, marine GHX diesel dry Mars extinguish muffler, marine FHX boiler Mars extinguisher, and various stainless steel expansion Festival (manufacturing unit - Jingjiang Dongxing Ship Equipment Factory)

Marine pressure water tank CB455-91:

marine type A hanging with flange pressure water tank, marine type B hanging with manhole pressure water tank, marine C type bearing with manhole pressure water tank (manufacturing unit - Jing Jiangdong Star Ship Equipment Factory)
ZYG marine assembled sea and fresh water pressure water tank:
Assembled seawater pressure water tank, assembled fresh water pressure water tank, combined sea fresh water pressure water tank (manufacturing unit - Jingjiang Dongxing Ship Equipment Factory)

Marine hot water tank CB/T3686-1995:

DRG series electric heating hot water tank, ZDR series steam-electric heating dual-purpose hot water tank, ZRG series steam heating water tank (manufacturing unit - Jingjiang Dongxing Marine Equipment Factory)

Marine quick-closing valve control box:

SDC541 pneumatic quick-closing valve control box, CSKX quick-closing valve control box (manufacturing unit - Jingjiang Dongxing Marine Equipment Factory)

Marine hot well unit, main cylinder liner preheating unit and other pressure vessels.

Jingjiang Dongxing Ship Equipment Factory obtained the marine equipment production license (XK26-0040014) issued by China National Shipbuilding Corporation in 2004. The factory covers an area of ​​38,000 square meters and a building area of ​​20,000 square meters. It has fixed assets of 5.46 million yuan and has more than 100 sets of various types of machinery and equipment. There are 180 employees and 14 engineers and technicians. There are more than 80 series of products and more than one thousand specifications. It is widely used in ships and industrial and mining enterprises of all sizes. The marine engine equipment and marine pressure vessels produced by the factory according to the requirements of the ship meet the standards of the Ministry of Shipping Industry Corporation. Obtained CCS (China), DNV (Norway), LR (UK), ABS (USA), GL (Germany), BV (France), KR (Korea), NK (Japan), RINA (Italy), PRS (Poland) Such as the factory approval or product approval of many classification societies. Complete specifications, fully suitable for all kinds of ships and boats.
