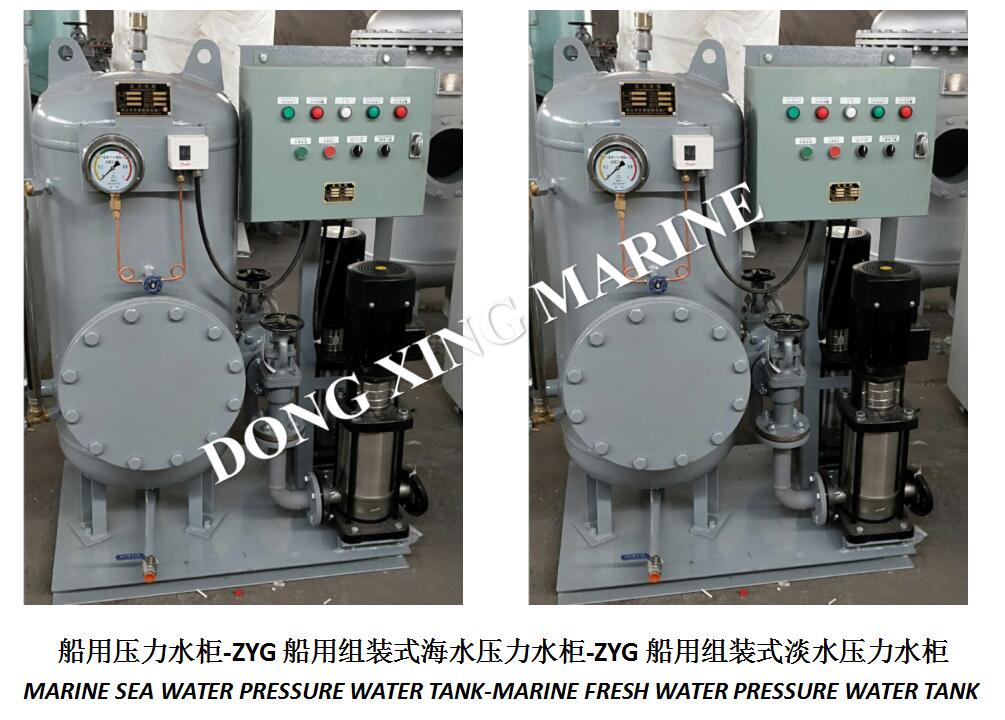

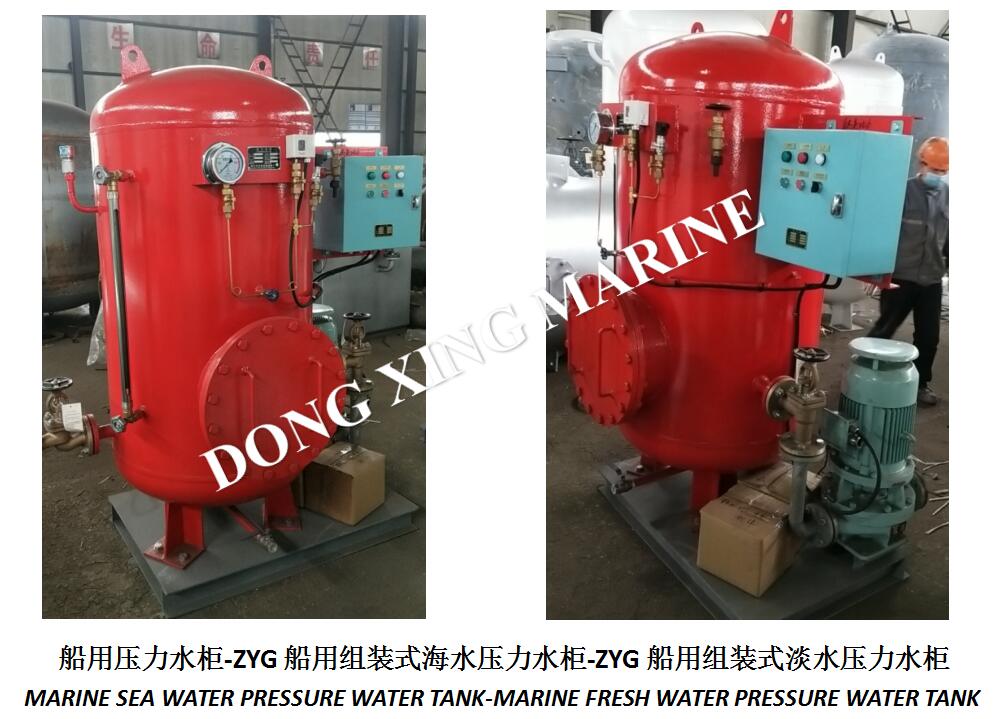

SHIPBUILDING PRESSURE WATER TANK-MARINE SEA WATER PRESSURE WATER TANK-MARINE FRESH WATER PRESSURE WATER TANK

MADE IIN CHINA

JINGJIANGSHI DONGXING MARINE FITTING WORKS

"DONGXING SHIP EQUIPMENT FACTORY, JINGJIANG CITY, JIANGSU, CHINA" IS A COLLECTION OF:

YLG MARINE PRESSURE WATER TANK, YLG SEA WATER PRESSURE WATER TANK, YLG FRESH WATER PRESSURE WATER TANK, YLG DRINKING WATER PRESSURE WATER TANK

ZYG MARINE ASSEMBLED PRESSURE WATER TANK, ZYG ASSEMBLED SEAWATER PRESSURE WATER TANK, ZYG ASSEMBLED FRESH WATER PRESSURE WATER TANK

ZYG(S) MARINE COMBINED PRESSURE WATER TANK, ZYG(S) COMBINED SEAWATER PRESSURE WATER TANK, ZYG(S) COMBINED FRESH WATER PRESSURE WATER TANK

A MANUFACTURER INTEGRATING PRODUCTION, SALES AND SERVICE!

OUR COMPANY-JINGJIANG DONGXING SHIP EQUIPMENT FACTORY SUCCESSFULLY DELIVERED "LIANYUNGANG 1×5200HP ATV TUG IN OFFSHORE NAVIGATION AREA"

ZYG0.2/0.6 MARINE SEAWATER PRESSURE WATER TANK×1 SET/SHIP

ZYG0.2/0.6 MARINE FRESH WATER PRESSURE TANK × 1 SET/SHIP

ZYG0.2/0.6 MARINE PRESSURE WATER TANK-MAIN TECHNICAL PARAMETERS AND STRUCTURE TYPE OF MARINE ASSEMBLED PRESSURE WATER TANK:

TECHNICAL REQUIREMENTS FOR MARINE ZYG0.2/0.6 ASSEMBLED SEAWATER PRESSURE TANK-ZYG0.2/0.6 MARINE ASSEMBLED FRESH WATER PRESSURE TANK:

1. MATERIAL: THE MATERIAL OF THE MARINE PRESSURE TANK IS Q345R, GB713-2008, THE SEAWATER PRESSURE TANK IS MADE OF THICKENED MARINE SEAMLESS STEEL PIPE, AND THE FRESH WATER PRESSURE TANK IS MADE OF 304 STAINLESS STEEL PIPE.

2. SURFACE TREATMENT: AFTER THE INTERNAL AND EXTERNAL SURFACES ARE THOROUGHLY SANDBLASTED TO REMOVE RUST, THE INTERNAL SURFACE OF THE FRESH WATER PRESSURE TANK IS COATED WITH NON-TOXIC EPOXY PAINT AND THE EXTERNAL SURFACE IS COATED WITH LIGHT GRAY TOPCOAT; THE INTERNAL SURFACE OF THE SEA WATER PRESSURE TANK IS COATED WITH NON-TOXIC EPOXY PAINT AND THE EXTERNAL SURFACE IS PAINTED GRAY TOPCOAT.

3. ELECTRIC SYSTEM: 380V/50HZ/3PH

4. PRESSURE CONTROLLER SETTING: 0.20MPA START, 0.40MPA STOP, INSTALL ON THE BODY AND DEBUG IT.

5. THE INLET AND OUTLET DIAMETERS ARE: DN40MM

6. CONTROL BOX REQUIREMENTS:

(1) FUNCTION: ①IT CAN CONTROL THE AUTOMATIC/MANUAL START-STOP FUNCTION OF THE FRESH WATER/SEA WATER PUMP/BACKUP PUMP, AND SET THE SWITCH.

②OPERATION INSTRUCTIONS, FAULT ALARMS, ETC. NEED TO BE EXTENDED TO THE CENTRALIZED CONSOLE (PROVIDING 485 INTERFACE, PASSIVE NORMALLY CLOSED POINT, OPEN CIRCUIT ALARM).

③THE PRESSURE CONTROLLER AND INSTRUMENT ARE IMPORTED PARTS, THE BRAND IS DANFOSS; THE ELECTRICAL COMPONENTS ARE SIEMENS OR SCHNEIDER.

(2) CONTROL BOX COLOR: ELECTRIC GRAY.

(3) THE FRESH WATER/SEA WATER PUMP/BACKUP PUMP IS SUPPLIED AS A WHOLE, AND THE SELLER DESIGNS ACCORDING TO ALL THE PROVIDED PARAMETERS;

7. THE GASKET IS MADE OF NON-ASBESTOS ARAMID RUBBER GASKET, AND THE VALVE AND ACCESSORIES ARE MADE OF COPPER OR STAINLESS STEEL.

6. Marine ZYG0.2/0.6 Assembled Seawater Pressure Water Tank-ZYG0.2/0.6 Marine Assembled Fresh Water Pressure Tank Information Provided

Within 10 days after the contract is signed and effective, provide 6 sets of approved data, which will be sent to the shipowner, shipyard and design institute respectively, and returned to the supplier after being collected by the shipyard (within 10 days). A set of approved data CAD discs (for the design institute) ). The supplier shall submit two sets of work drawings to the shipowner, shipyard, and design institute within 7 days after revising the approval opinions.

The completed drawing shall be submitted to the shipyard along with the equipment, and the content of the completed data of the shipowner and shipyard shall be no less than the approved data, and a set of electronic CD-ROM shall be provided. The drawings within the scope of the drawings are designed and drawn in the AUTOCAD2004 version, and the text is compiled in the OFFICE2003 version.

6.1 The content and quantity of the drawings (Chinese and English)

6 sets of approved plans/ship (2 sets for the owner, 2 sets for the design institute, 2 sets for the shipyard)

6 sets of work drawings/ship (2 sets for the owner, 2 sets for the design institute, 2 sets for the shipyard)

Completed drawings 5 ​​sets/ship (4 sets for the owner and 1 set for the shipyard)

4 sets of CCS marine product certificates/ship (including 1 master and 3 pairs)

4 sets of product qualification certificates/ship (including 1 officer and 3 pairs)

Asbestos-free relevant certificates (or factory certificates) 4 sets/ship (including 1 master and 3 mates)

7. Marine ZYG0.2/0.6 assembled seawater pressure tank-ZYG0.2/0.6 Marine assembled fresh water pressure tank Quality assurance and after-sales service

The quality guarantee period is 1 year after the ship is delivered.

According to the requirements of the shipyard's production schedule, the supplier will assign a service engineer to the designated site within 48 hours after receiving the shipyard's written notice to provide free guidance on installation and commissioning.

8. Test acceptance of ZYG0.2/0.6 assembled seawater pressure tank for marine use-ZYG0.2/0.6 assembled freshwater pressure tank for marine use

Before leaving the factory, the equipment shall be tested on land according to the test program approved by CCS ship inspection. After the seller’s quality department and CCS ship inspection are qualified, the buyer will be notified one week in advance to send someone to participate in the product delivery test. Check and accept in accordance with the factory test program and completion data, and issue a certificate of conformity.

Pilot projects

When the personnel of Party A arrive at the factory for inspection and acceptance, follow the factory test outline provided by the factory. At the same time, Party B prepares all the completion materials, and the inspection personnel check them one by one, and form a memorandum of the problems found. Those that can be corrected on the spot are corrected on the spot, and those that cannot be corrected on the spot For correction within a limited time, Party A will bring back the acceptance memorandum as the basis for Party A to pay for the shipment.

Professional manufacturer of marine pressure vessels-Jingjiang Dongxing Marine Equipment Factory
JINGJIANGSHI DONGXING MARINE FITTING WORKS
(JINGJIANG DONGXING MARINE FITTING WORKS)

Jingjiang Dongxing Ship Equipment Factory is located in the lower reaches of the Yangtze River and is located in Xilai Town, Jingjiang City. Founded in 2000, it was appointed by China National Shipbuilding Corporation in 2000 and was a joint venture in the same year.

Jingjiang Dongxing Ship Equipment Factory Specializing in the production:
Marine air bottle CB493-98, marine electric heating water tank CB/T3686-1995, marine steaming dual-purpose hot water tank CB/T3686-1995, marine sea fresh water pressure water tank CB455-91, DC454 wet Mars extinguisher, VTJZ Pressure vessel for dry Mars extinguisher, quick-closing valve control box SDC541, hot well module / hot well preheating unit

Marine air bottle CB493-87:

Marine A-type vertical air bottle, marine A-type inclined air bottle, marine B-type bedroom air bottle (manufacturing unit - Jingjiang Dongxing Marine Equipment Factory)

Marine Mars extinguished silencer:

DC454 wet Mars extinguisher, DS454 dry Mars extinguisher VTJZ dry Mars extinguish silencer, marine GHX diesel dry Mars extinguish muffler, marine FHX boiler Mars extinguisher, and various stainless steel expansion Festival (manufacturing unit - Jingjiang Dongxing Ship Equipment Factory)

Marine pressure water tank CB455-91:

marine type A hanging with flange pressure water tank, marine type B hanging with manhole pressure water tank, marine C type bearing with manhole pressure water tank (manufacturing unit - Jing Jiangdong Star Ship Equipment Factory)
ZYG marine assembled sea and fresh water pressure water tank:
Assembled seawater pressure water tank, assembled fresh water pressure water tank, combined sea fresh water pressure water tank (manufacturing unit - Jingjiang Dongxing Ship Equipment Factory)

Marine hot water tank CB/T3686-1995:

DRG series electric heating hot water tank, ZDR series steam-electric heating dual-purpose hot water tank, ZRG series steam heating water tank (manufacturing unit - Jingjiang Dongxing Marine Equipment Factory)

Marine quick-closing valve control box:

SDC541 pneumatic quick-closing valve control box, CSKX quick-closing valve control box (manufacturing unit - Jingjiang Dongxing Marine Equipment Factory)

Marine hot well unit, main cylinder liner preheating unit and other pressure vessels.

Jingjiang Dongxing Ship Equipment Factory obtained the marine equipment production license (XK26-0040014) issued by China National Shipbuilding Corporation in 2004. The factory covers an area of ​​38,000 square meters and a building area of ​​20,000 square meters. It has fixed assets of 5.46 million yuan and has more than 100 sets of various types of machinery and equipment. There are 180 employees and 14 engineers and technicians. There are more than 80 series of products and more than one thousand specifications. It is widely used in ships and industrial and mining enterprises of all sizes. The marine engine equipment and marine pressure vessels produced by the factory according to the requirements of the ship meet the standards of the Ministry of Shipping Industry Corporation. Obtained CCS (China), DNV (Norway), LR (UK), ABS (USA), GL (Germany), BV (France), KR (Korea), NK (Japan), RINA (Italy), PRS (Poland) Such as the factory approval or product approval of many classification societies. Complete specifications, fully suitable for all kinds of ships and boats.
